Description

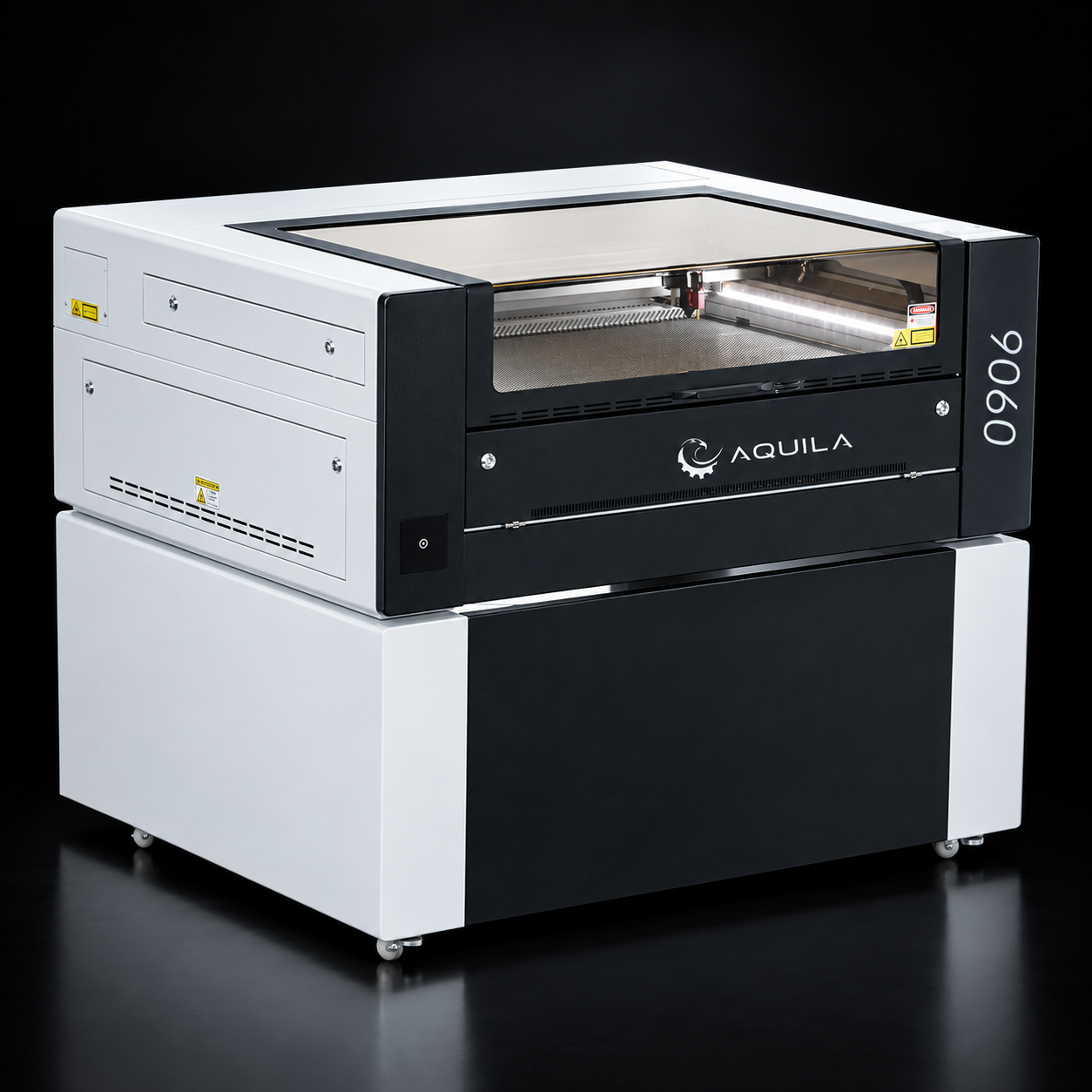

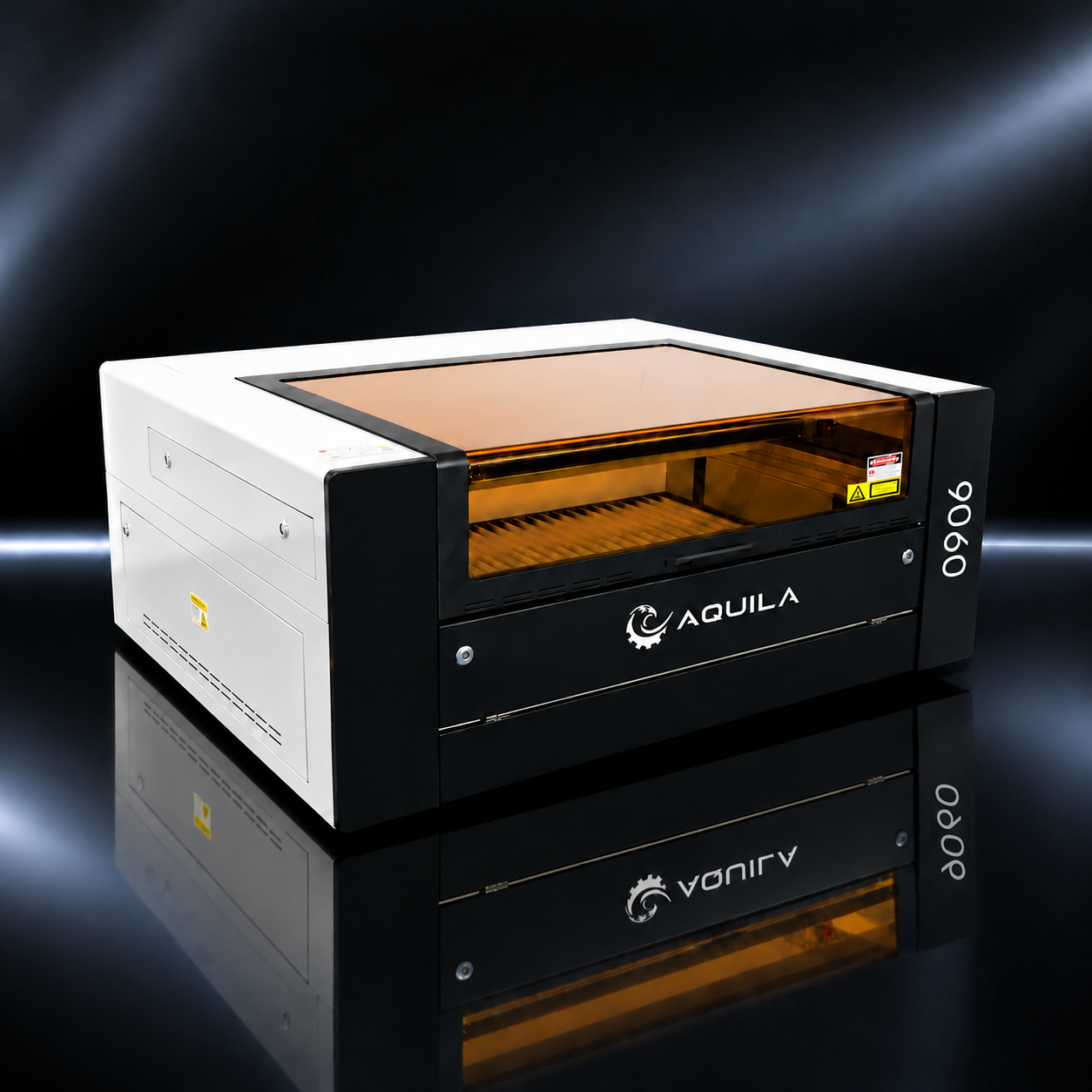

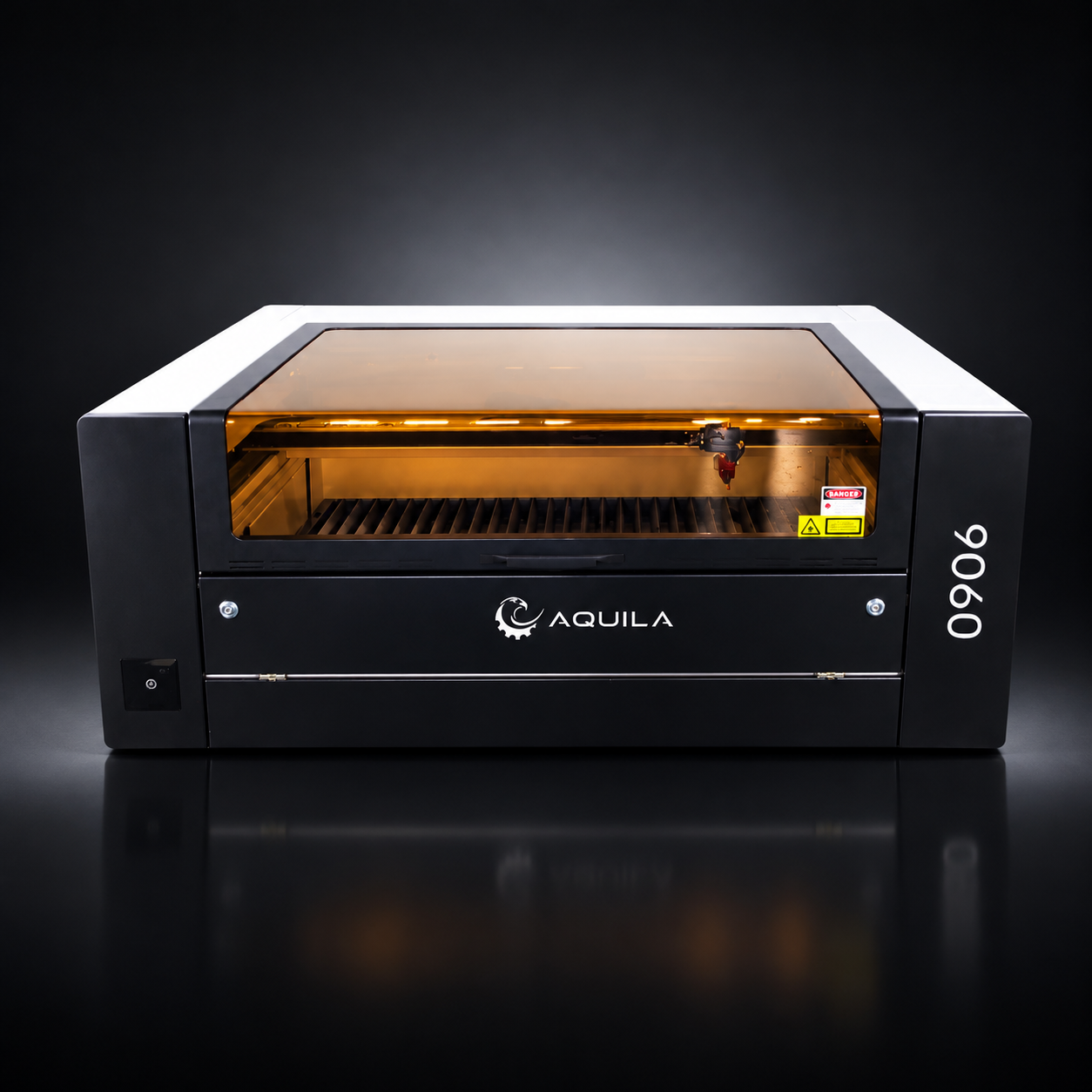

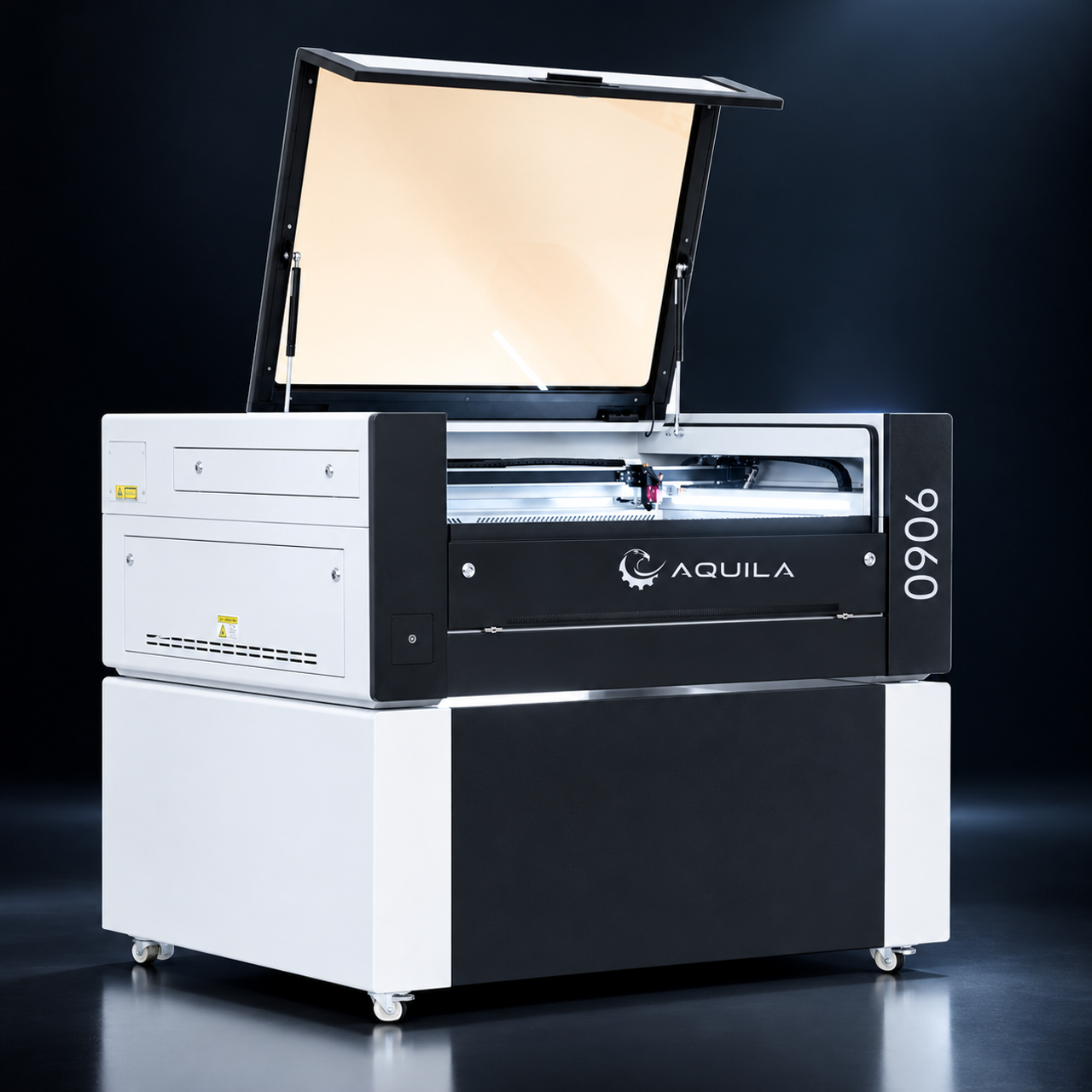

Aquila 9060 CO2 Laser Engraver & Cutter
The Aquila 9060 is a professional desktop CO2 laser engraving and cutting machine designed for growing businesses, workshops, creative studios, and product manufacturers.
With a 900 × 600 mm working area, integrated auxiliary systems, and versatile material processing capabilities, it helps you produce personalized products, detailed engravings, signage, and custom-cut components with greater flexibility.
Professional Features in a Compact Machine
The Aquila 9060 combines a generous working area with an integrated design to support everyday engraving and cutting work without the footprint of a large industrial machine.

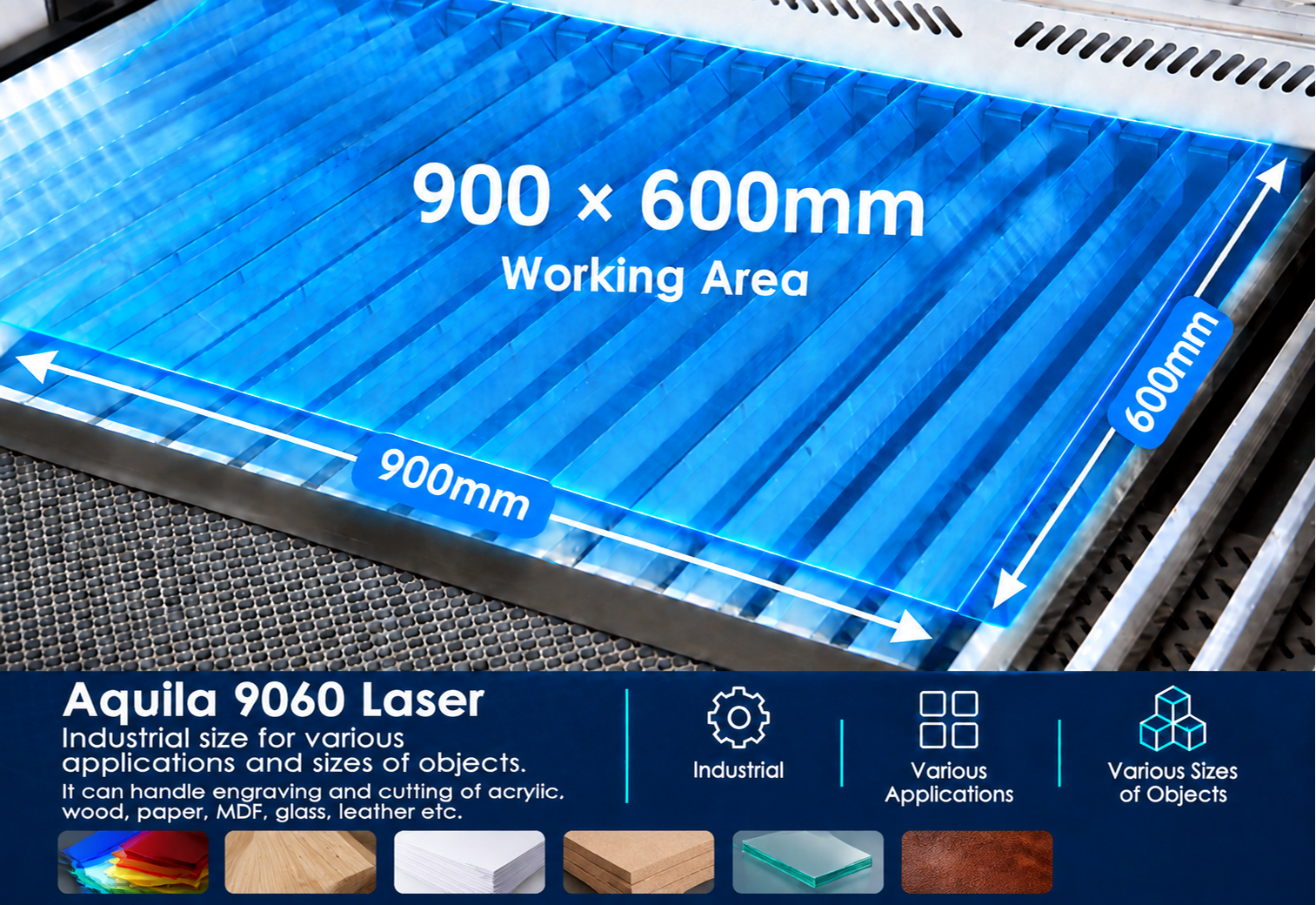

01. A Generous 900 × 600 mm Workspace
Process larger designs and multiple smaller items in one job. The working area is suited to signage, acrylic displays, craft products, gifts and custom components.

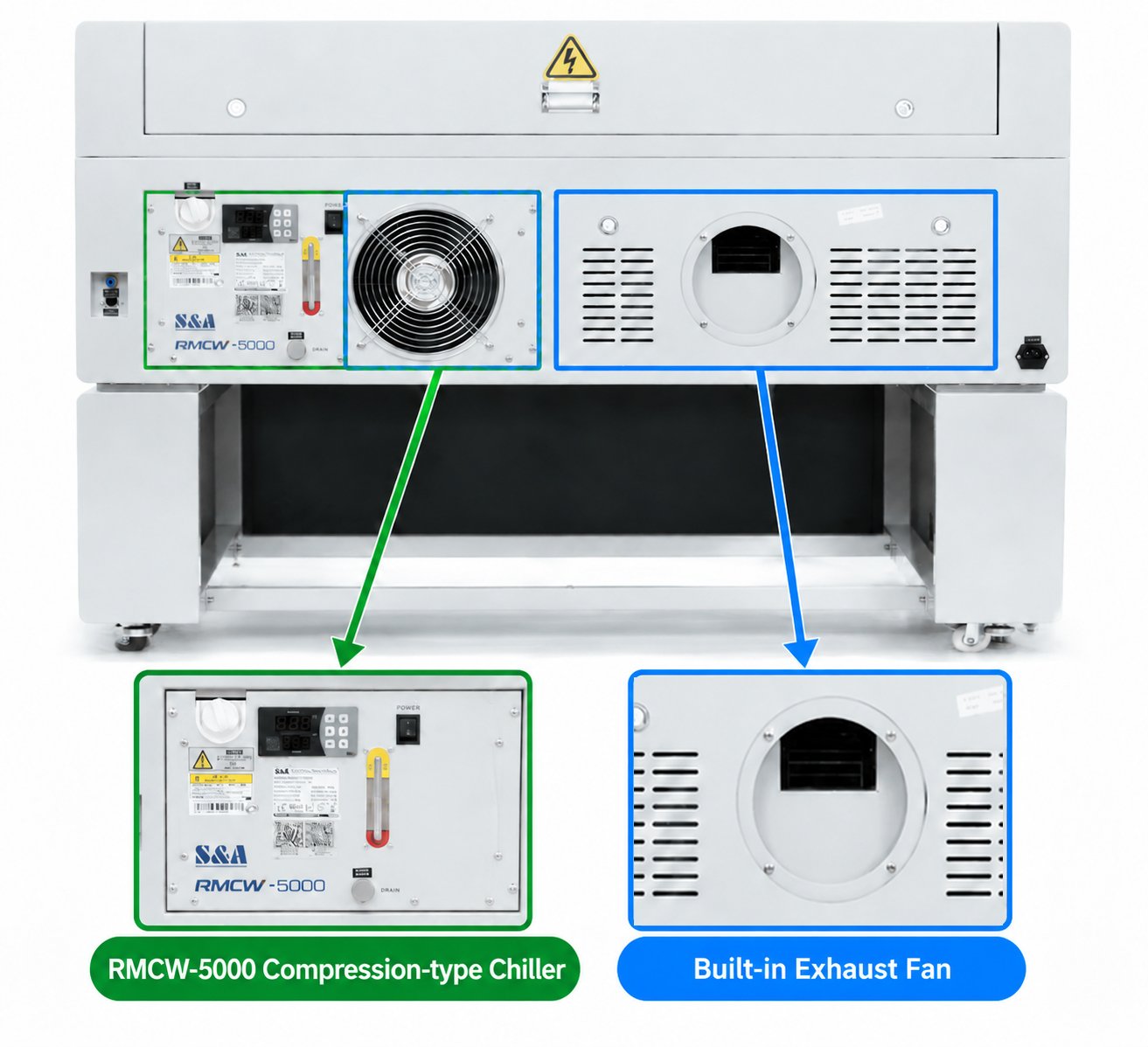

02. Integrated Cooling System and Integrated Air Assist and Exhaust
Integrated water chiller to help manage laser operating temperature and support longer production sessions. Air assist helps remove debris from the cutting zone and reduce scorching. The exhaust blower helps extract smoke and fumes
03. Fast, Accurate Engraving
Maximum engraving speed of up to 1200 mm/s and acceleration up to 5G.
04. Flexible Worktable Options
Honeycomb and blade tables support different material-processing needs.
05. Convenient Positioning and Focusing
A red-dot positioning beam helps indicate the processing location. Autofocus and Wi-Fi are available.

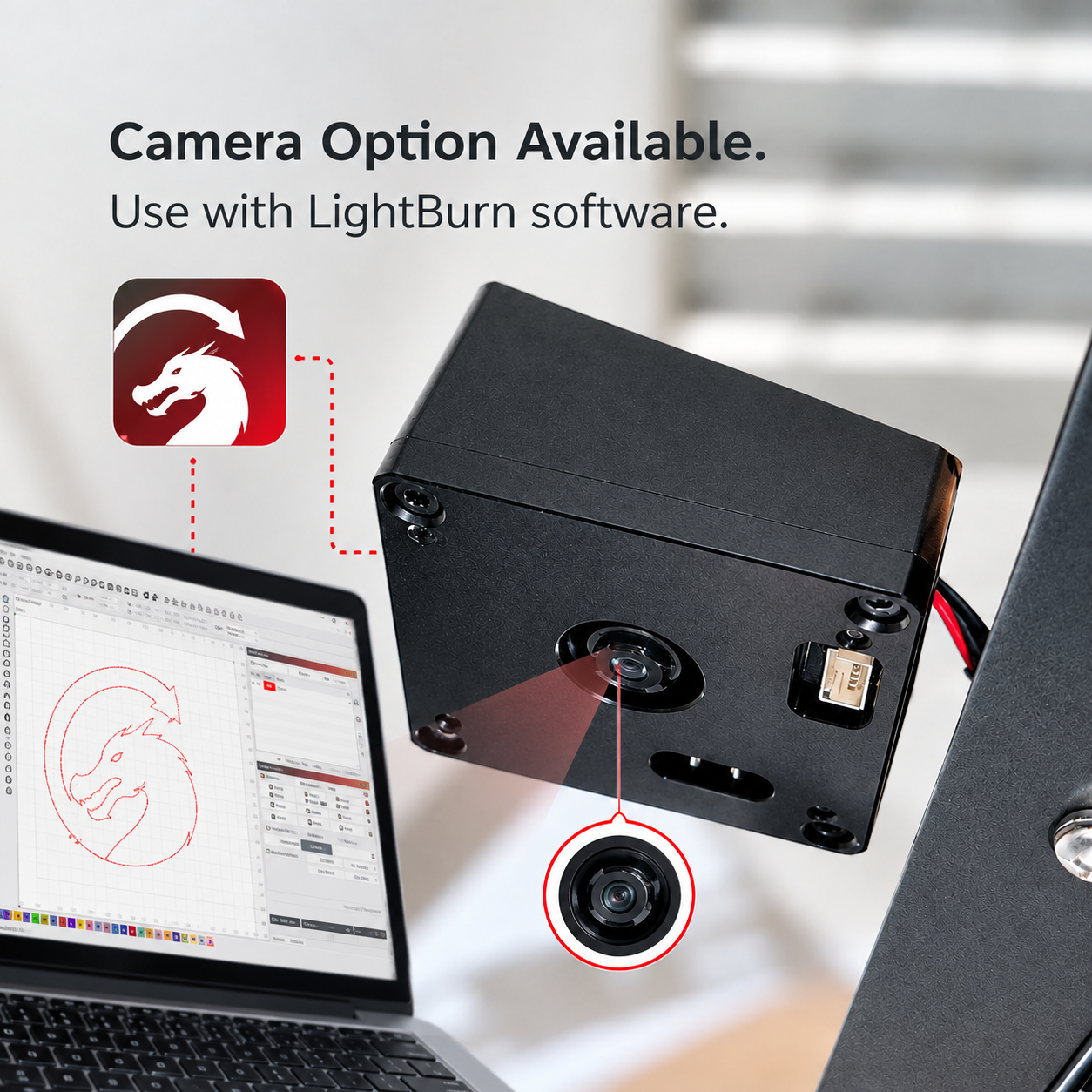

06. Optional Camera for Easier Laser Processing
Enhance cutting and engraving convenience with the optional camera system. When used with LightBurn software, it helps position designs more easily and accurately on your workpieces.

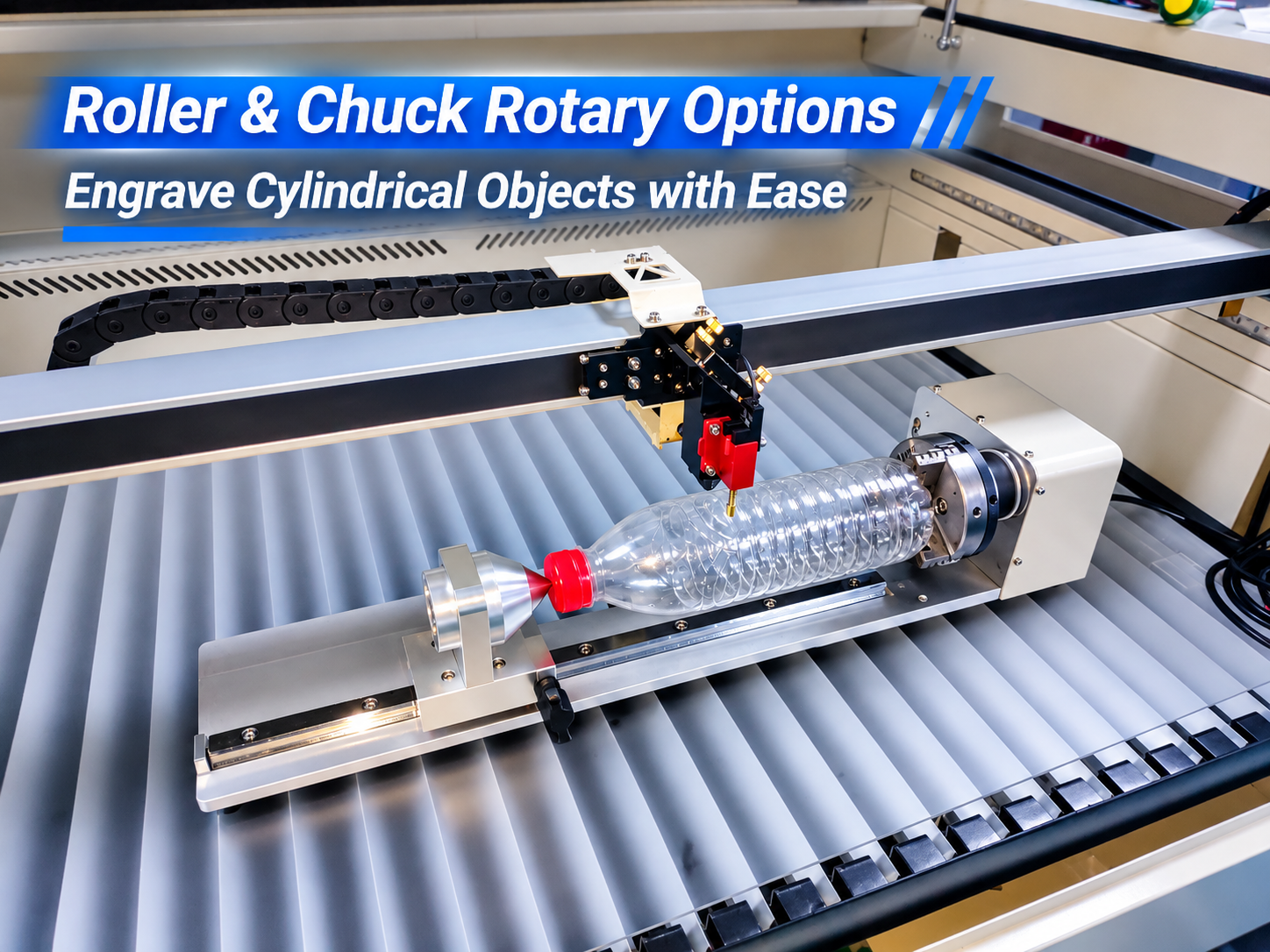

07. Optional Rotary Attachments
Choose a roller rotary or chuck rotary to engrave cylindrical and round objects with the AEON MIRA series, expanding your creative possibilities.
One Machine, More Creative Possibilities
Produce a wide range of customized products and components using compatible materials.
Material compatibility and cutting thickness depend on material composition, laser power, and processing settings. Never process PVC, vinyl or unknown materials that may release hazardous fumes. A standard CO2 laser does not directly cut bare metals.
Aquila 9060 Technical Specifications
| Model | Aquila 9060 |
|---|---|
| Laser type | CO2 laser |
| Laser power | 60W / 80W/90W/100W glass tube; RF 30W,60W |
| Working area | 900 × 600mm |
| Maximum engraving speed | Up to 1200 mm/s |
| Maximum acceleration | Up to 5G |
| Z-axis adjustment | 150 mm |
| Worktable | Honeycomb and blade tables |
| Cooling | Integrated water chiller |
| Air assist | Integrated air pump |
| Exhaust | Integrated exhaust blower |
| Connectivity | USB / Ethernet; Wi-Fi availability |
| Machine dimensions | Approx. 1306 × 1037 × 555 mm |
| Net weight | Approx. 208 kg |
